Description
This switch is compatible with many models of electric scooters, but most widely used by Razor Scooters USA on several of their models. Check the compatibility list to ensure this Razor scooter switch is for your particular model.

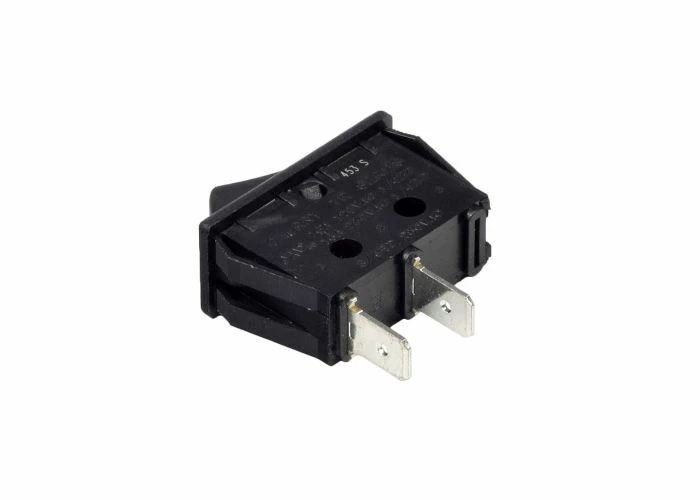

This switch comes equipped with two 1/4″ tab connections as pictured. Connect your two red wires off of your Razor controller to the 1/4″ terminals on this switch. The bottom wire from your OEM Razor scooter switch goes to the bottom tab on this switch. Middle red wire to the middle 1/4″ tab.
โ WARNING California Residents: Proposition 65 Warning
Specifications
Contact Form: SPST
Current, Rating: 16 A
Dielectric Strength: 1000 VAC
Dimension, Depth: 30.5 mm (outside flange to ends of 1/4″ terminals, does not include rocker height)
Dimensions, Backside: 27 mm x 10.9 mm
Dimensions, Outside Flange: 32 mm x 13.9 mm
Material, Body: Polycarbonate
Material, Contact: Silver Alloy
Mechanical Life: 50000 Operations
Mounting Type: Panel
Number of Poles: 1
Number of Positions: 2
Operation: On-Off
Resistance, Contact: 0.020 Ohms (Max.)
Resistance, Insulation: 10^8 Ohms (Min.) @ 500 VDC
Standards: UL Listed, CSA Certified, VDE Approved
Temperature, Operating, Maximum: 85 ยฐC
Temperature, Operating, Minimum: -20 ยฐC
Termination: Quick Connect
Type: Rocker
